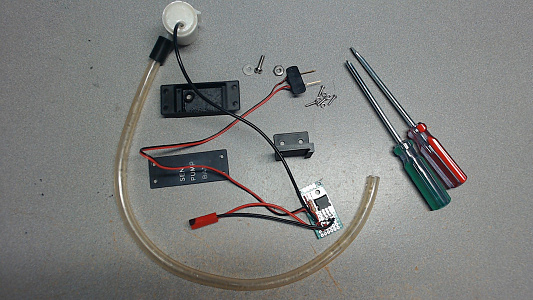

I just finished putting together a circuit, testing it and creating a video for an automatic bilge pump. This circuit can also be used to trigger a warning light or noise/sound.
Easy to build and inexpensive. The video shows the pump working. Enjoy!
Lew
Florida ☀️😎, USA
https://youtu.be/l32YRTsu4Ho
[{"id":"171013986046","name":"171013986046","caption":"","url":"https:\/\/hobby.land\/media\/171013986046\/l","thumbUrl":"https:\/\/hobby.land\/media\/171013986046\/s","isImage":false,"ext":"file"},{"id":"171013988390","name":"171013988390","caption":"","url":"https:\/\/hobby.land\/media\/171013988390\/l","thumbUrl":"https:\/\/hobby.land\/media\/171013988390\/s","isImage":false,"ext":"file"},{"id":"171014011437","name":"171014011437","caption":"","url":"https:\/\/hobby.land\/media\/171014011437\/l","thumbUrl":"https:\/\/hobby.land\/media\/171014011437\/s","isImage":false,"ext":"file"}]

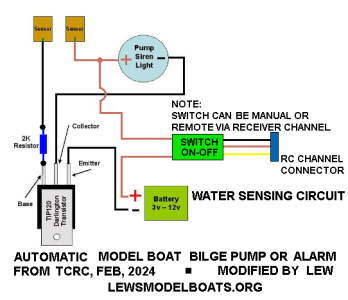

I just finished putting together a circuit, testing it and creating a video for an automatic bilge pump. This circuit can also be used to trigger a warning light or noise/sound.

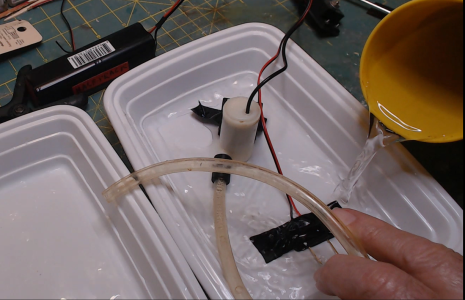

Easy to build and inexpensive. The video shows the pump working. Enjoy!
Pump (3-5V submersible) - I see the same on Amazon (2 for $7 US) the link below. Temu is even cheaper.
TIP120 Darlington available everywhere (~1$ US).
Tubing is 3/16 inch dia. (Tygon, aquarium, etc) .
Resistor 2K ohm I used a 2.2 K ohm (OK).
Breadboard - most anywhere electronics are sold.
Wires, small gauge. I used only black and red pairs to keep wires together.
Connectors - common small red battery type.

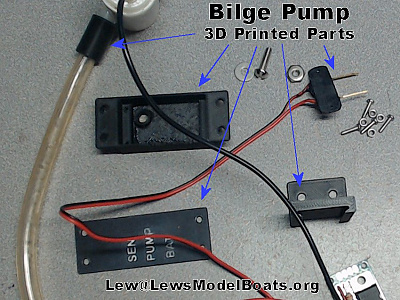

Plastic parts - If anyone has access to an FDM 3D printer, I can send you the STL files via email.
Lew
Florida, USA
https://www.amazon.com/Sipytoph-Submersible-Aquariums-Fountain-Hydroponics/dp/B09185Y8BN/ref=asc_df_B09185Y8BN/?gclid=CjwKCAjw17qvBhBrEiwA1rU9w9BCnY9ywNIukCOTarW3BMx_L1jBSaQyPHk0V0vppi1LBtQkPE_onBoCg30QAvD_BwE&hvadid=507755101118&hvdev=c&hvdvcmdl&hvlocint&hvlocphy=9012131&hvnetw=g&hvpone&hvpos&hvptwo&hvqmt&hvrand=496028437160920010&hvtargid=pla-1265514251177&linkCode=df0&mcid=2be73f49425435b3989b98b5fddaaa61&psc=1&tag=hyprod-20
[{"id":"171021913156","name":"171021913156","caption":"","url":"https:\/\/hobby.land\/media\/171021913156\/l","thumbUrl":"https:\/\/hobby.land\/media\/171021913156\/s","isImage":false,"ext":"file"}]
MAN THE PUMPS!!😮
