One recommendation is that you may want to wash, dry, and iron the cloth first to remove the sizing in the fabric.

In my case, I also wanted to give the sail a more natural, used tone. I soaked the cloth overnight in Hawaiian coffee, and it turned out to be a very nice color.
I really like the result—it now has some character, and the tone matches well with the wood of the boat.

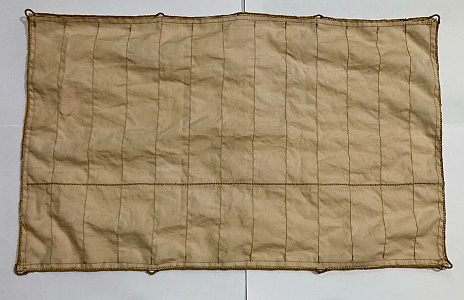

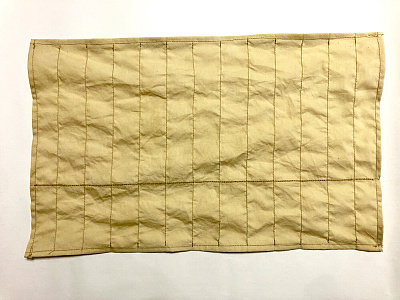

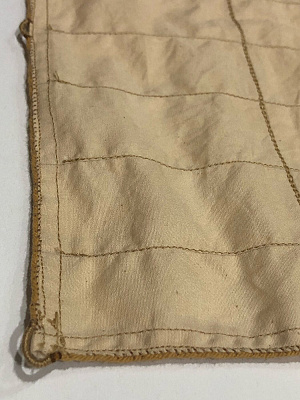

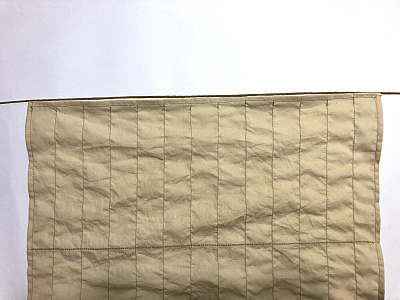

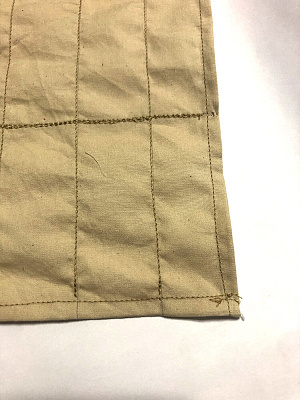

I added a double stitch along the lower section of the sail to represent the bottom panel, and also double-seamed the edges, following the reference pictures.

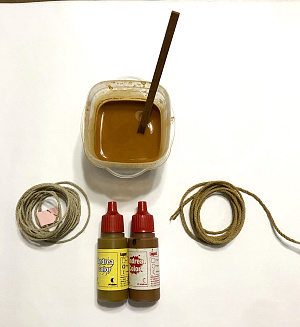

Coloring the bolt rope:
Going through my stash of mini rope, I found one that worked well in scale, but the color was too light. To fix that, I mixed a wash using two different browns to darken it.
I left the rope soaking overnight, then dried it with paper towels and let it air dry completely.

For reference, I used a photo of a reconstructed ancient vessel (similar to Kyrenia II, seen from the bow), which helped guide the overall look of the sail.

This is what I came up with.
Next step – sewing the bolt rope:

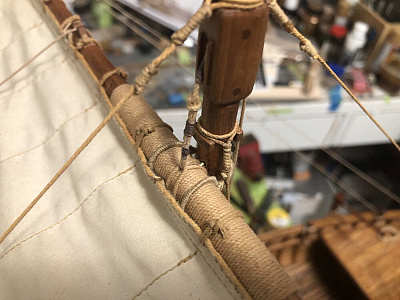

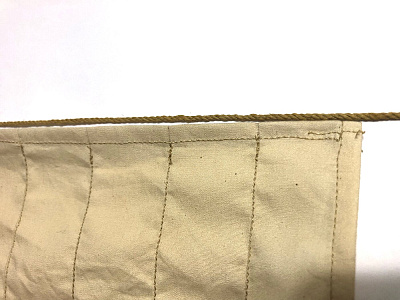

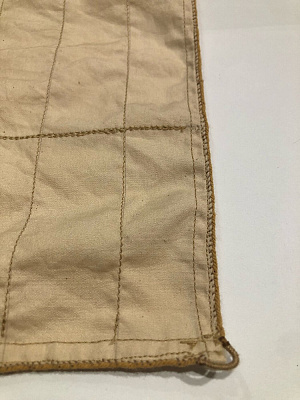

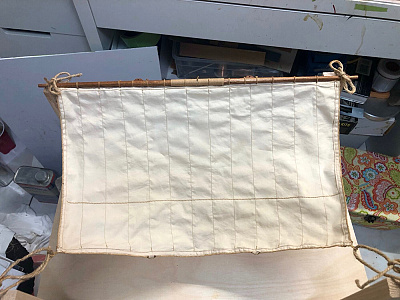

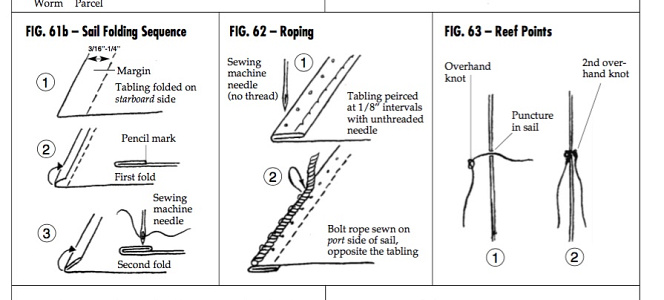

The rope is sewn all around the perimeter of the sail.
It’s a seam that doesn’t go through the rope itself, but rather secures it along its sides.
At the corners, the rope forms loops (almost like a figure-eight) that continue along the entire edge. These loops are later used to adjust the tension of the sail.

In my case, I passed the stitches through the bolt rope itself and kept them very close together. In total, there are about 560 hand stitches around the sail.

I also made the head and clew cringles.
It may not be perfect, but I’m happy with how it looks.

Correction on the clew cringles:

According to a fellow modeler, my original Clew Wrinkles (the diagonal folds or lines that radiate out from the corners) were incorrect because they were left open.
This would not be practical, since under load (when the sail fills with wind), the force could pull them apart or tear them from the sail edge.

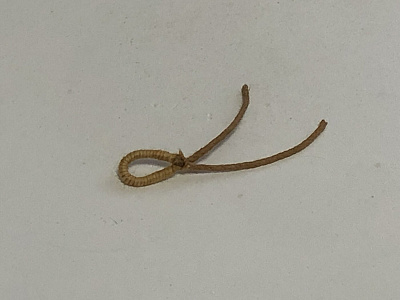

To correct this, I made four new closed cringles, removed the original ones, and replaced them with the proper closed versions.
The last picture shows the adjusted clew cringles.
😎

Adding more realism to the sail

I know there are many ways to make sails look “filled,” but I came up with this somewhat odd-looking contraption to help me achieve the effect I was after.

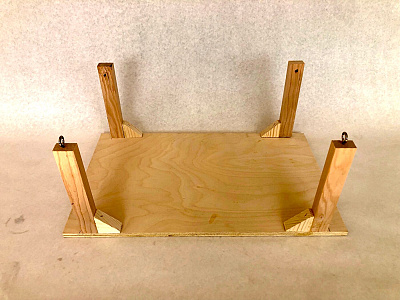

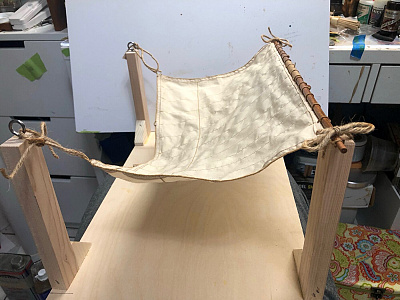

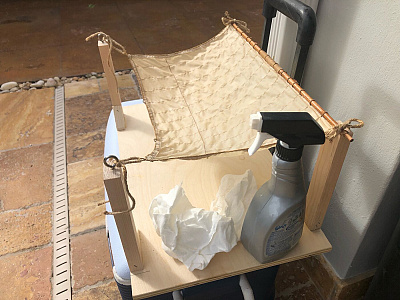

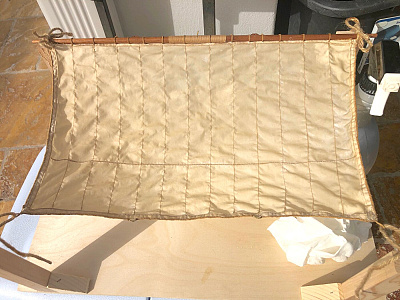

First, I built a simple jig using a flat base and four vertical posts. The idea was to have anchor points where I could tension the sail into a natural curve.

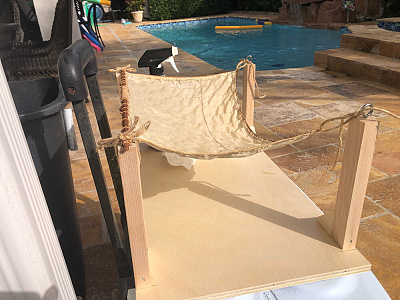

Next, I attached the yard and secured the sail corners with lines to the posts.
By adjusting the tension on each corner, I was able to create a relaxed, wind-filled shape rather than a flat surface.

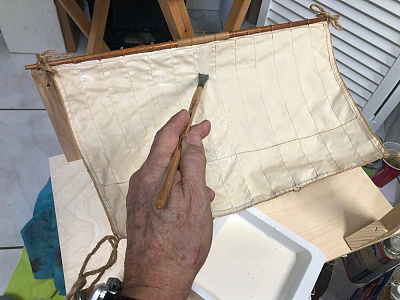

Once I was happy with the overall form, I prepared a 70/30 mix of white glue and water and brushed it into the cloth. This helped stiffen the sail and lock in the shape.

I then placed the whole setup outside in the Florida sun. With the heat, it dried very quickly—just a few minutes.

After the first coat dried, I diluted the same mixture further to about 85% water and 15% glue. This thinner mix allowed me to spray both the front and back of the sail without removing it from the jig, helping to even out the stiffness and avoid buildup.

I kept paper towels handy to absorb any excess and prevent puddling, especially in the low areas of the sail.

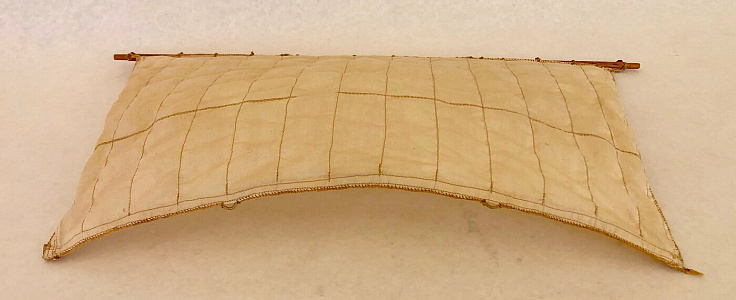

Once everything was fully dry, I removed the sail from the jig.

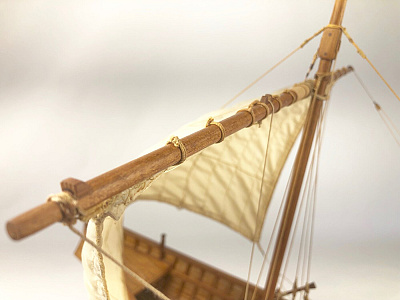

The shape held nicely, with a natural sag and fullness that gives it a much more realistic appearance.

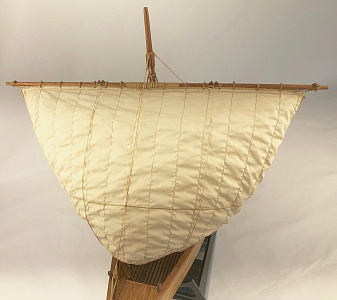

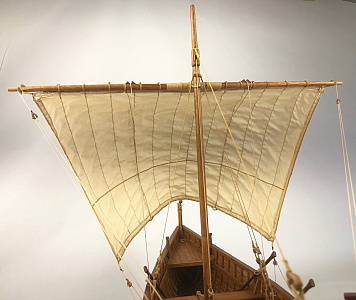

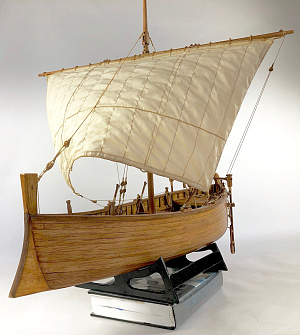

Final results.
Not too bad.
I am happy with the shape.
😎

Next, I wanted to add a bit more life to the model by including some loose items onboard—similar to what was actually found in the real disinterred Galilee boat.

Among the finds were a clay pot, a lamp, coins, and a number of iron nails.

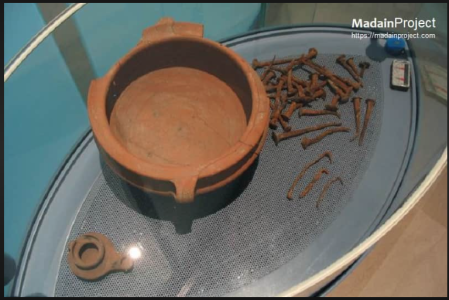

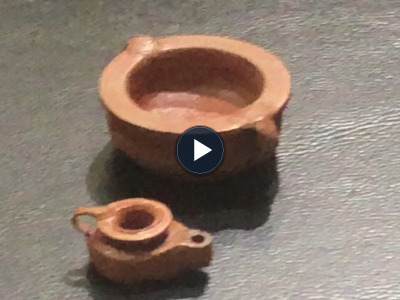

I’ll start with a reference photo of the real artifacts, followed by my attempt at reproducing them.

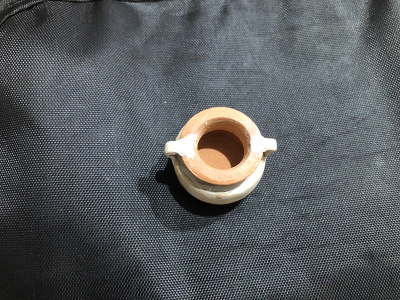

To begin, I picked up a few different sized clay pots from MiniArt. They are nice little pieces, but needed some work to better resemble the more primitive look of the originals.

The first step was modifying their shapes.
Using a small rotary tool and sanding sticks, I reduced some of the sharper edges and refined the profiles to make them look more hand-made and less “factory perfect.”

For the lamp, I reshaped one of the smaller pots, lowering the profile and forming a simple spout. It took a bit of trial and error, but eventually I got something that felt closer to the archaeological examples.

Next came detailing.
I added small imperfections and slight asymmetry to give each piece a more authentic, used appearance. Nothing too exaggerated—just enough to break the uniformity.
Once I was happy with the shapes, I moved on to painting. I used earthy tones to replicate the look of fired clay, building up layers gradually.
A light dusting of pigment helped tone everything down and blend the colors.

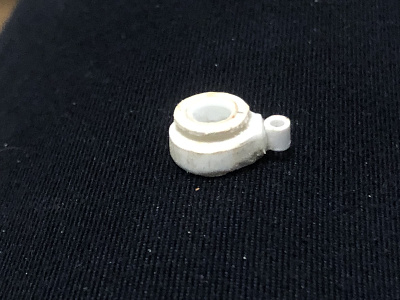

For the small oil lamp, I scratch-built it from styrene, shaping and sanding it down to size before adding a simple attachment loop.

Finally, everything was placed loosely in the boat to see how it all came together.

It’s a small detail, but I think it adds a lot of character and helps tell the story.
😎

Next item on the agenda were the four small bags included with the kit.

At first glance, I assumed the designer intended these to represent some kind of ballast.
However, after looking a bit deeper into how these boats actually worked, that idea didn’t quite hold up.

For the small wooden fishing boats used on the Sea of Galilee in the 1st century, there’s no solid archaeological or textual evidence suggesting they carried loose ballast such as sandbags or stones.

What we do know—especially from the excavated “Sea of Galilee boat”—is that these vessels were naturally stable by design.
They had a broad beam and shallow draft, which provided inherent stability without the need for added ballast.

Stability mainly came from:
Hull shape and width
Crew positioning
Gear and catch acting as incidental weight.

Fishermen would constantly adjust balance by shifting themselves or their equipment, rather than relying on fixed ballast.

In fact, loose ballast like sand or stones would likely create more problems than it solves:

It could shift in rough water and destabilize the boat.
It would take up valuable working space.
It adds unnecessary weight to a vessel meant to remain light and maneuverable.

That led me to rethink what these “bags” could represent.
I decided instead to tie them into a small but interesting biblical detail. In Mark 4:38 it says:
“But he was in the stern, sleeping on the pillow…”
The Greek word used there is proskephalaion, which simply means “something for the head”—a headrest or cushion—so there’s a bit of room for interpretation.

That “pillow” could have been:
A folded cloak or bundle of clothing
A coil of rope or soft gear
A simple padded sack used by the helmsman

So I went down that route.

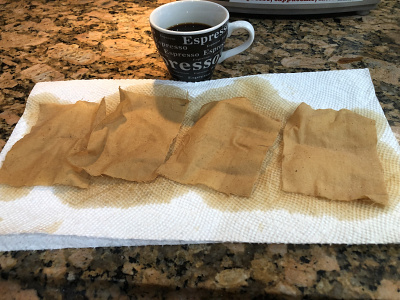

First, I stained the cloth using espresso coffee (had to put it to good use…).
Once dry, I hand-sewed the bags, filled them with sand fixed with diluted glue, and closed them up to dry. This gave them a nice natural sag and weight.

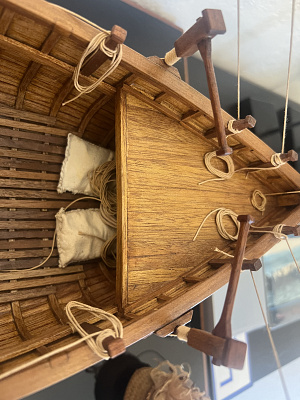

Since Mark 4:38 also tells us Jesus was in the stern, I placed two of these sacks there as makeshift headrests.

As for where He stood when calming the storm—again, the simplest reading is that He rose from the stern and addressed the wind and sea from within the boat, likely without moving far from that position.
Small detail, but it adds a bit of narrative to the model.
😎

Next, I wanted to add a bit more life to the model by including some loose items onboard—similar to what was actually found in the real disinterred Galilee boat.
Among the finds were a clay pot, a lamp, coins, and a number of iron nails. (first picture)

I’ll start with a reference photo of the real artifacts, followed by my attempt at reproducing them.

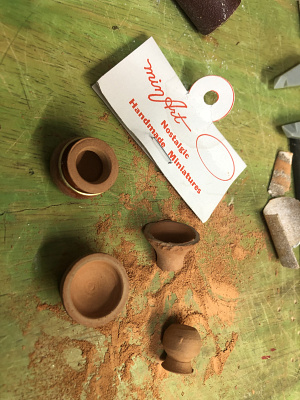

To begin, I picked up a few different sized clay pots from MiniArt. They are nice little pieces, but needed some work to better resemble the more primitive look of the originals.
The first step was modifying their shapes.

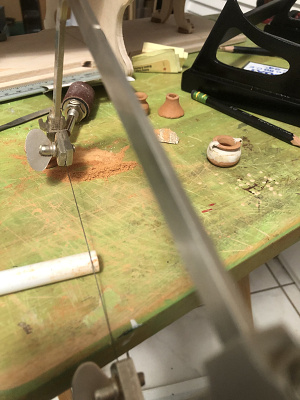

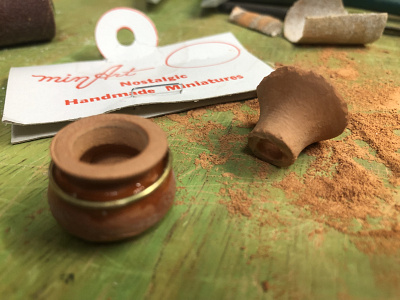

Using a small rotary tool and sanding sticks, I reduced some of the sharper edges and refined the profiles to make them look more hand-made and less “factory perfect.”

For the lamp, I reshaped one of the smaller pots, lowering the profile and forming a simple spout. It took a bit of trial and error, but eventually I got something that felt closer to the archaeological examples.

Next came detailing.
I added small imperfections and slight asymmetry to give each piece a more authentic, used appearance. Nothing too exaggerated—just enough to break the uniformity.

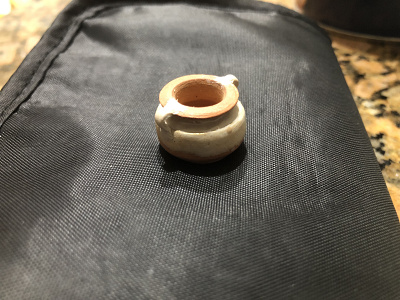

Once I was happy with the shapes, I moved on to painting.
I used earthy tones to replicate the look of fired clay, building up layers gradually.
A light dusting of pigment helped tone everything down and blend the colors.

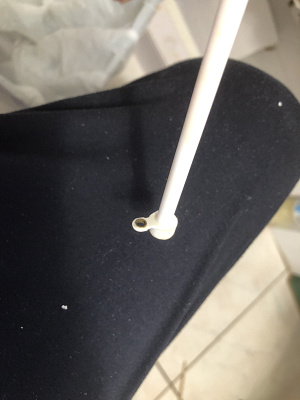

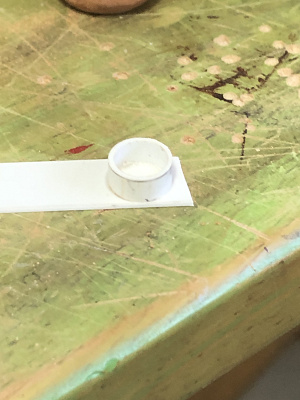

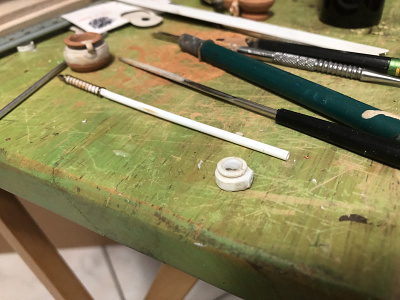

For the small white piece, I scratch-built it from styrene, shaping and sanding it down to size before adding a simple attachment loop.

Finally, everything was placed loosely in the boat to see how it all came together.
It’s a small detail, but I think it adds a lot of character and helps tell the story.
😎

Sorry guys, I just can't delete the second posting.
😎

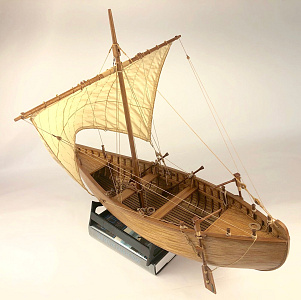

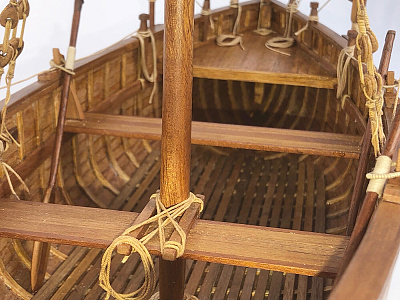

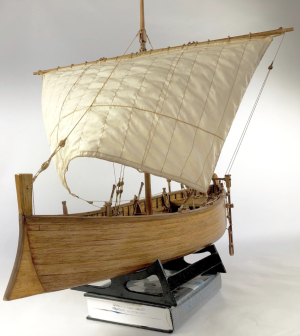

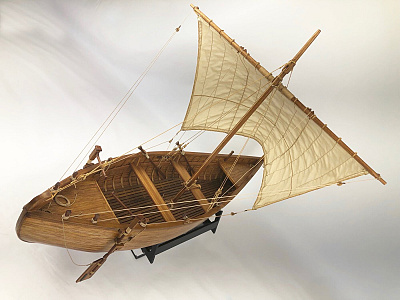

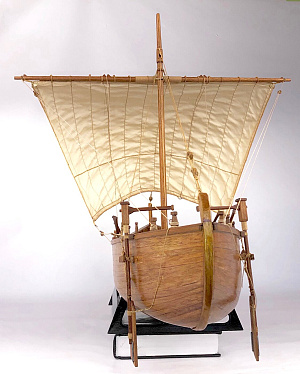

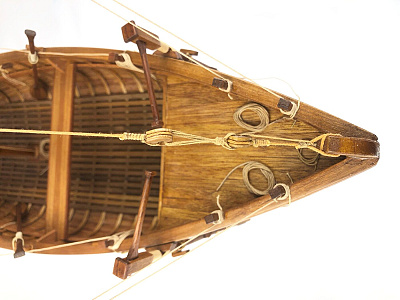

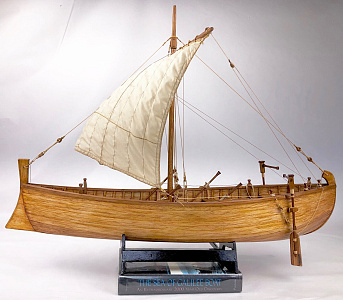

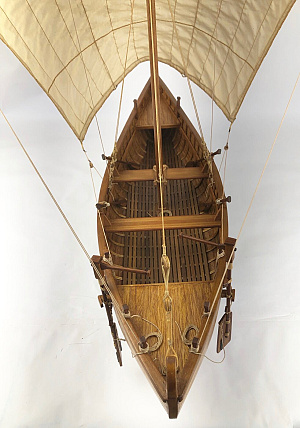

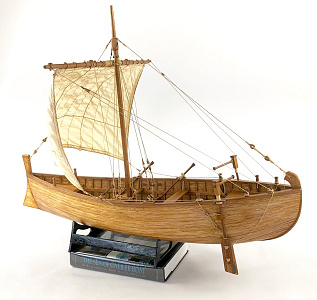

These are the final results after completing all the rigging.
I’m really pleased with how it all came together.

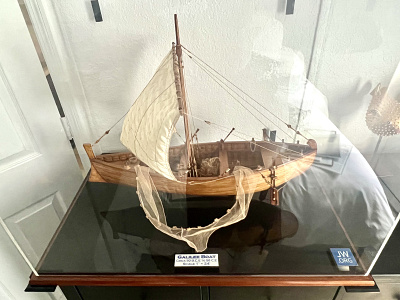

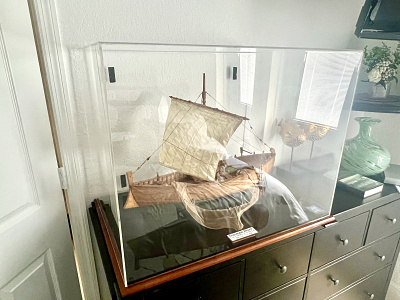

It’s now sitting in an acrylic case, waiting to be transported to a Bible museum.

I hope you’ve enjoyed following this build as much as I’ve enjoyed working on it.
😎

I just wanted to add this AI picture with my model. I think is amazing.
