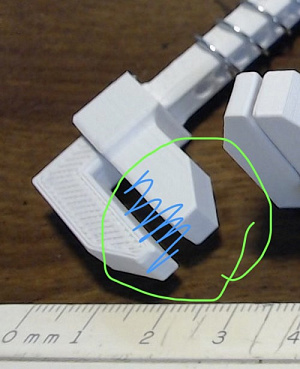

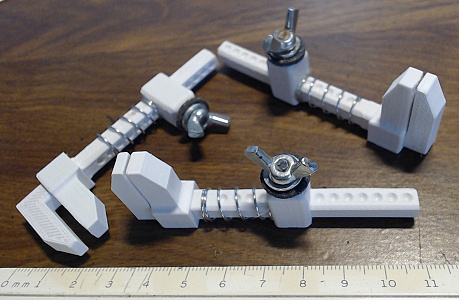

I just had a need to clamp some parts together in a tight space and none of my other clamps would work. I came up with the _spring loaded clamp_ and thought that if any of you need one I can email (PM me) you the OBJ (for 3D Printer) file. Similar clamps use a little wedge but often slip. The pressure is applied to the moving jaw and is adjustable for varying work thickness. The hole in the adjustable ferrule is .05inch (1.27mm) and can be drilled out and tapped for a screw. The screw only needs to be finger tight to avoid slipping. The spring is about .31inch (7.8mm) ID and the length can be about 1inch (25mm)

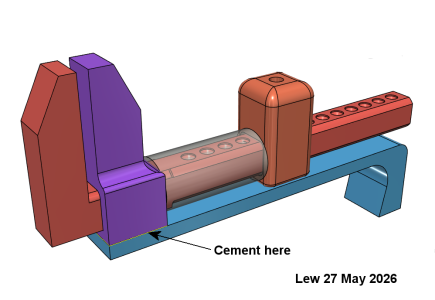

+After I printed these I saw the need for making this a one hand operation, so I added the "L" shape trigger to pull the sliding jaw back. It will be cemented to the sliding jaw as seen in the assembly CAD drawing. (I will upgrade mine tomorrow.)+
Lew
