April 19th

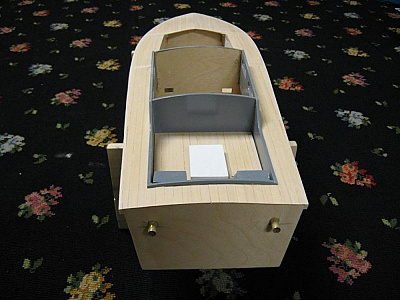

Due to the small size of the model, a degree of planning needs to be done to make a neat installation. With this model the forward cabin has an open back and therefore subject to possible water intrusion. The rear deck area also has the potential to convert to a swimming pool if subject to some enthusiatic reversing. That really only leaves the mid cabin in which to squeeze the gear into.

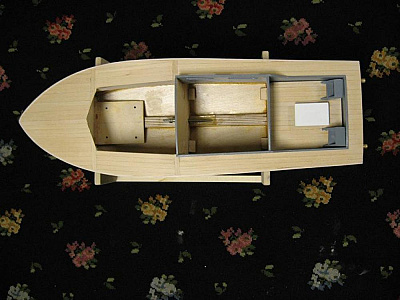

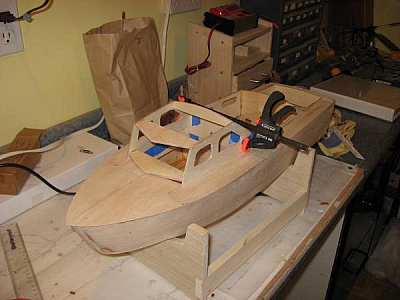

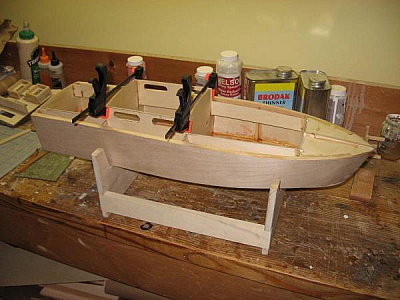

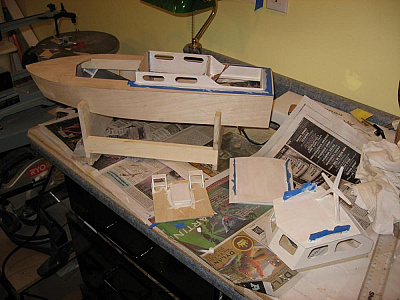

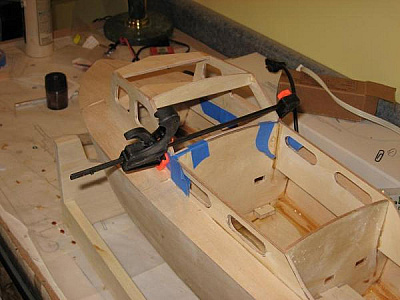

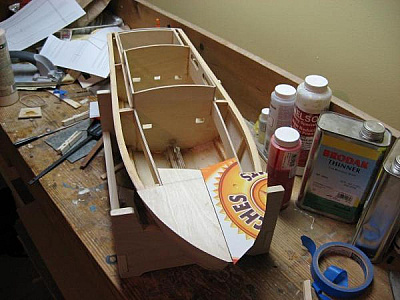

My goal was to make a drop in board that located the hardware. First I slotted the cabin sides back into place to check how much room I really had for placing and removing the board into the hull. I made a cardboard template just to confirm the clearances.

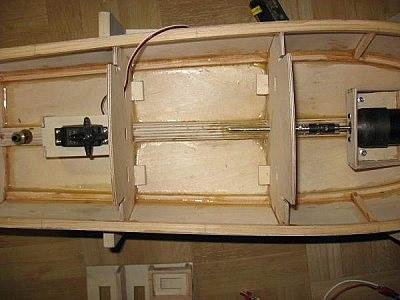

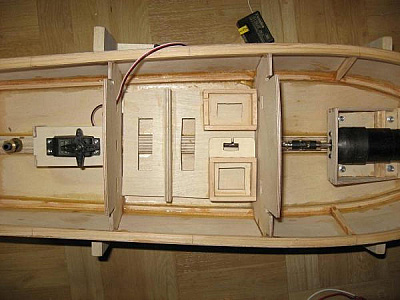

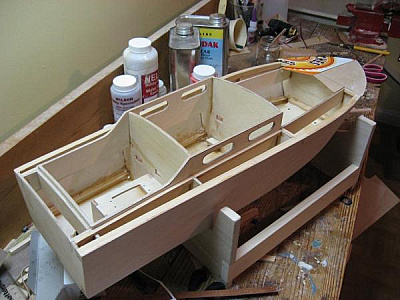

First I glued four support pads in place to support the board, two to the front bulkhead, two to the back bulkhead. Then on my board I glued four location pads to the underside. These pads are a very close fit between the support pads on the bulkheads and prevent any sideways movement of the board when its dropped onto the support pads.
I then cut and fixed a battery barrier to the board. This is to keep the battery packs in place against the rear bulkhead.

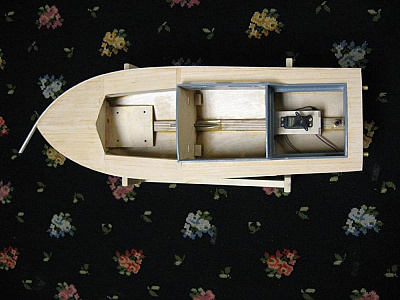

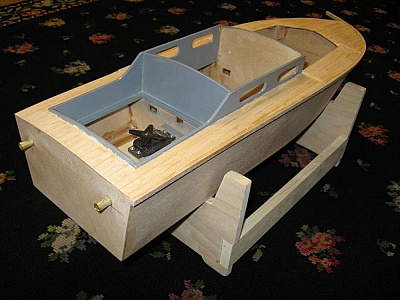

The receiver and speed control locate into their own four sided nests. The bottom of the nest has been opened up to allow for ventilation. Not really necessary for the receiver but more helpful for the speed control.
I also cut a couple of slots in the bottom of the board so that you can see the skins and keel for any water accumulation in the hull.
Now I have located the radio hardware the temporary equipment wiring will be re-done now I know the necessary wire lengths. However I will probably hold off on this job until much later.
