Having put together a couple of "kit's" over the years, normally with fiberglass hull, I decided after having a electrical failure while on the local pond that I could do with something to retrieve a stricken boat, but with what and how, well after posing the question of what others do I decided to have a look about and found some idea's for a push tug, it seemed like the ideal thing and was something like I was looking for, I didn't purchase a kit, instead decided to build it myself...

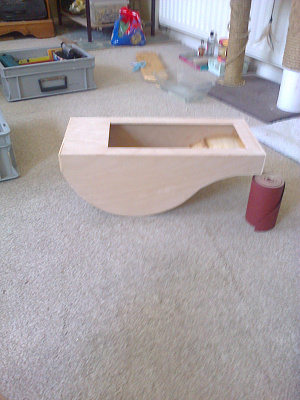

After making the hull according to the plan's, I looked at it and thought... na, that won't work. the plan's gave the hull a half moon shape, I found that it didn't balance well and needed a fair bit of weight due to the displacement, so I cut the bottom of and now is a flat bottom vassal, this sat better and stable in water.. I intend to run it on a 12v sla battery and two Mtroniks 600 motors... the deck and cabin has copied the general shape but a few changes to add features and suit the design that pop's into my head as I go... its coming along well I think... all materials are mostly odd's and end's, bit's I find and mixed wood except the deck's which I intend to varnish with white sides..
[{"id":"1530449342","name":"1530449342.jpg","caption":"","url":"https:\/\/hobby.land\/media\/1530449342\/l","thumbUrl":"https:\/\/hobby.land\/media\/1530449342\/s","isImage":true,"ext":"jpg"},{"id":"1530950807","name":"1530950807.jpg","caption":"","url":"https:\/\/hobby.land\/media\/1530950807\/l","thumbUrl":"https:\/\/hobby.land\/media\/1530950807\/s","isImage":true,"ext":"jpg"},{"id":"1530950832","name":"1530950832.jpg","caption":"","url":"https:\/\/hobby.land\/media\/1530950832\/l","thumbUrl":"https:\/\/hobby.land\/media\/1530950832\/s","isImage":true,"ext":"jpg"}]
Having put together a couple of "kit's" over the years, normally with fiberglass hull, I decided after having a electrical failure while on the local pond that I could do with something to retrieve a stricken boat, but with what and how, well after posing the question of what others do I decided to have a look about and found some idea's for a push tug, it seemed like the ideal thing and was something like I was looking for, I didn't purchase a kit, instead decided to build it myself...
After making the hull according to the plan's, I looked at it and thought... na, that won't work. the plan's gave the hull a half moon shape, I found that it didn't balance well and needed a fair bit of weight due to the displacement, so I cut the bottom of and now is a flat bottom vassal, this sat better and stable in water.. I intend to run it on a 12v sla battery and two Mtroniks 600 motors... the deck and cabin has copied the general shape but a few changes to add features and suit the design that pop's into my head as I go... its coming along well I think... all materials are mostly odd's and end's, bit's I find and mixed wood except the deck's which I intend to varnish with white sides..

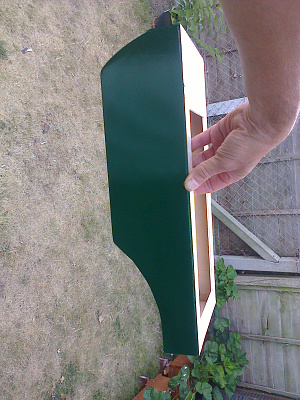

Thank's... a slight change of plan with the colour, the hull is now dark green, but it suit's.. the cabin is still white, I still want to do the decks with varnish with white sides... I will post a few photos soon...

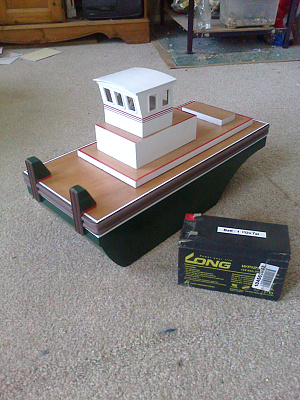

just an update, the top deck and cabin is nearly done... work on the hull continues.
[{"id":"1531497108","name":"1531497108.jpg","caption":"","url":"https:\/\/hobby.land\/media\/1531497108\/l","thumbUrl":"https:\/\/hobby.land\/media\/1531497108\/s","isImage":true,"ext":"jpg"},{"id":"1531497137","name":"1531497137.jpg","caption":"","url":"https:\/\/hobby.land\/media\/1531497137\/l","thumbUrl":"https:\/\/hobby.land\/media\/1531497137\/s","isImage":true,"ext":"jpg"}]
well, bathroom trial's have taken place, a few adjustments, i.e positioning of the battery for balance, otherwise no bad at all, sit's ok may need a little balancing with weights but the open pond will allow travel and view from all angle's, electrics are in and basic, old transmitter and receiver, a cheep ebay esc, new motors, shafts, prop's and rudders, all working together well, the rest is as mentioned "stuff" that I found in the loft, shed and junk room.
[{"id":"1531855965","name":"1531855965.jpg","caption":"","url":"https:\/\/hobby.land\/media\/1531855965\/l","thumbUrl":"https:\/\/hobby.land\/media\/1531855965\/s","isImage":true,"ext":"jpg"},{"id":"1531855991","name":"1531855991.jpg","caption":"","url":"https:\/\/hobby.land\/media\/1531855991\/l","thumbUrl":"https:\/\/hobby.land\/media\/1531855991\/s","isImage":true,"ext":"jpg"}]
well, bathroom trial's have taken place, a few adjustments, i.e positioning of the battery for balance, otherwise no bad at all, sit's ok may need a little balancing with weights but the open pond will allow travel and view from all angle's, electrics are in and basic, old transmitter and receiver, a cheep ebay esc, new motors, shafts, prop's and rudders, all working together well, the rest is as mentioned "stuff" that I found in the loft, shed and junk room.
Hi Ed.. Thanks for looking and saying I have done a great job👍, not sure if its as good as your San Pedro. it has been a fun build and turned out better than I thought it would, still those little bits to do.. this build has the possibility to continue for a while yet as bits and extra's are added.😊
Well.. sea trial's have taken place, a little to heavy so a smaller lighter battery to try next time, wrong propeller's to powerfull but they was one's i allready had so ordering new ones, and a minor pin hole leak.. otherwise, works well, pushed my big 4ft boat about ok... and forgot to take my *@#& phone so no photo's ....
Well.. sea trial's have taken place, a little to heavy so a smaller lighter battery to try next time, wrong propeller's to powerfull but they was one's i allready had so ordering new ones, and a minor pin hole leak.. otherwise, works well, pushed my big 4ft boat about ok... and forgot to take my *@#& phone so no photo's ....
if I hadn't already paid the car park fee, I would have gone back home and got the ..... phone, I'm using sla batteries, the one I thought it would need and seem to ok when testing at home was a 12v 7a, however when on a run it seemed to sit a little low but balanced well, so I also have a 12v 5a battery and will give that a try, due to the physical size difference an internal adjustment will be needed...
