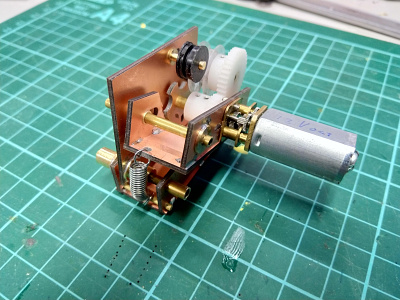

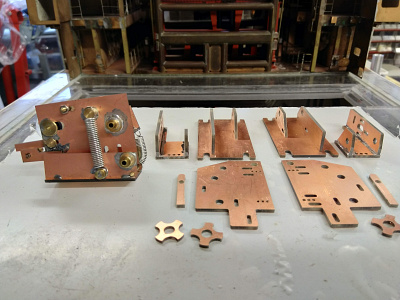

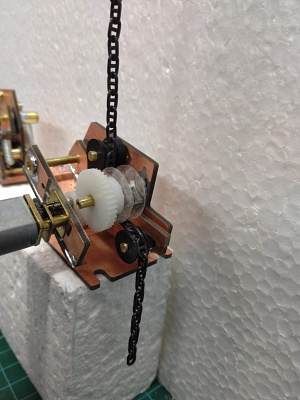

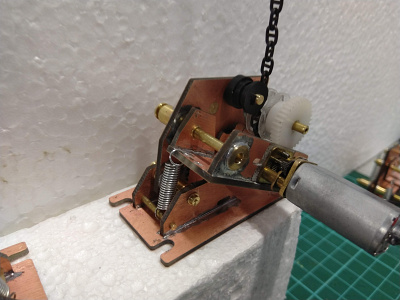

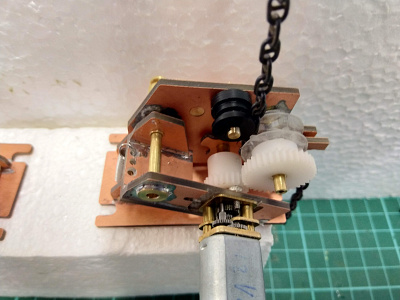

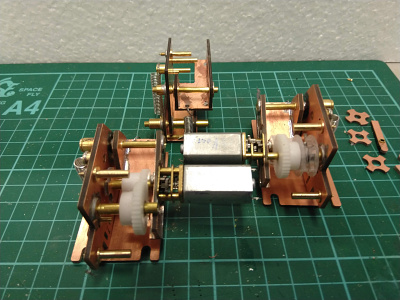

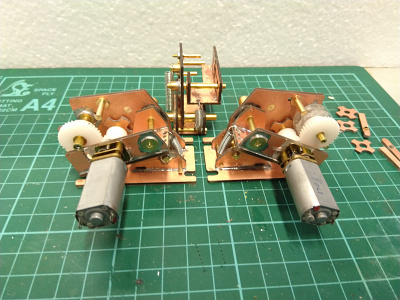

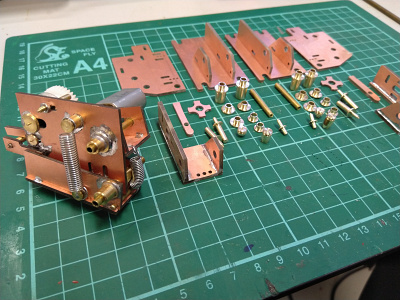

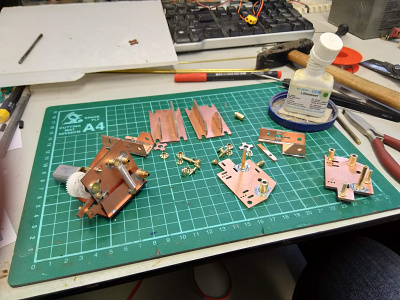

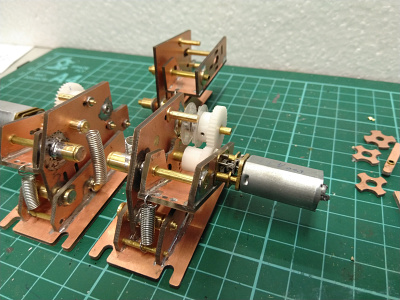

My home made Free Fall anchor winch for my model Maersk Topper. The original design is made by http://www.ankerwinde.eu/de/ But My anchor and chain is to heavy so I adjusted the chain roller and extra guide rollers. First I made a test model to test of all modifications are really working.
[{"id":"155765970337","name":"155765970337","caption":"","url":"https:\/\/hobby.land\/media\/155765970337\/l","thumbUrl":"https:\/\/hobby.land\/media\/155765970337\/s","isImage":false,"ext":"file"},{"id":"155765970466","name":"155765970466","caption":"","url":"https:\/\/hobby.land\/media\/155765970466\/l","thumbUrl":"https:\/\/hobby.land\/media\/155765970466\/s","isImage":false,"ext":"file"},{"id":"155765970546","name":"155765970546","caption":"","url":"https:\/\/hobby.land\/media\/155765970546\/l","thumbUrl":"https:\/\/hobby.land\/media\/155765970546\/s","isImage":false,"ext":"file"},{"id":"155765970769","name":"155765970769","caption":"","url":"https:\/\/hobby.land\/media\/155765970769\/l","thumbUrl":"https:\/\/hobby.land\/media\/155765970769\/s","isImage":false,"ext":"file"},{"id":"155765970929","name":"155765970929","caption":"","url":"https:\/\/hobby.land\/media\/155765970929\/l","thumbUrl":"https:\/\/hobby.land\/media\/155765970929\/s","isImage":false,"ext":"file"},{"id":"155765970954","name":"155765970954","caption":"","url":"https:\/\/hobby.land\/media\/155765970954\/l","thumbUrl":"https:\/\/hobby.land\/media\/155765970954\/s","isImage":false,"ext":"file"},{"id":"155765970962","name":"155765970962","caption":"","url":"https:\/\/hobby.land\/media\/155765970962\/l","thumbUrl":"https:\/\/hobby.land\/media\/155765970962\/s","isImage":false,"ext":"file"},{"id":"155765971030","name":"155765971030","caption":"","url":"https:\/\/hobby.land\/media\/155765971030\/l","thumbUrl":"https:\/\/hobby.land\/media\/155765971030\/s","isImage":false,"ext":"file"},{"id":"155765971129","name":"155765971129","caption":"","url":"https:\/\/hobby.land\/media\/155765971129\/l","thumbUrl":"https:\/\/hobby.land\/media\/155765971129\/s","isImage":false,"ext":"file"}]
My home made Free Fall anchor winch for my model Maersk Topper. The original design is made by http://www.ankerwinde.eu/de/ But My anchor and chain is to heavy so I adjusted the chain roller and extra guide rollers. First I made a test model to test of all modifications are really working.
Brilliant👍
Just what I've been looking for for the anchor winch and (more importantly) the Rescue winch on the stern of my 1/72 destroyer.
What is the minimum weight to ensure the 'free fall'?
That was always my problem up to now.
The winches I have need something like a tin of baked beans hanging on them to make them run out.☹️
Cheers, Doug 😎

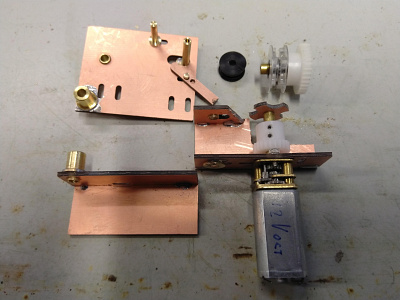

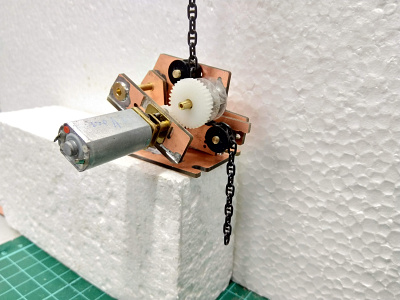

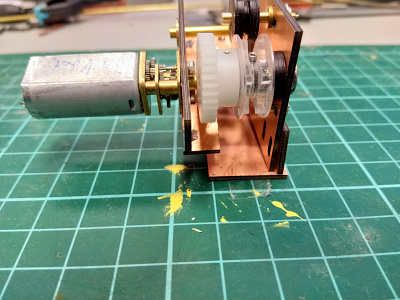

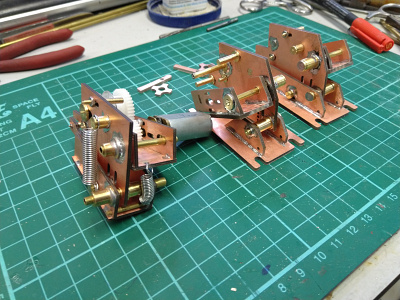

The base plate has been enlarged in the new model.

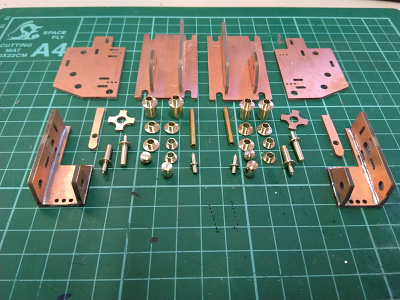

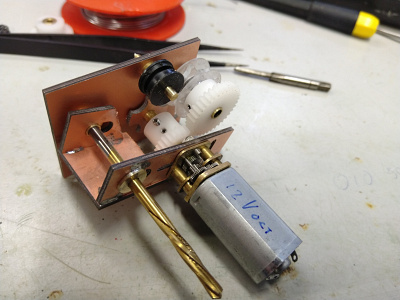

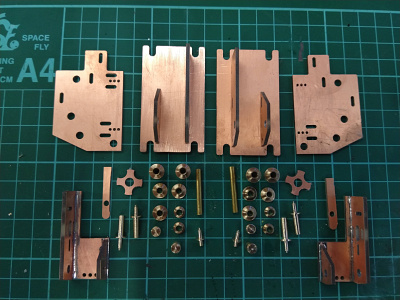

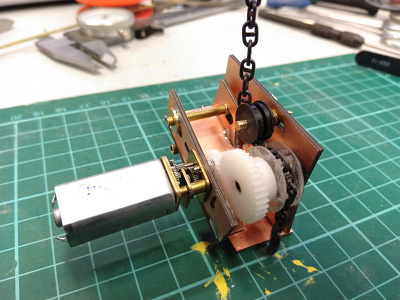

The vertical base has been enlarged so that the guided rollers can also be mounted on this plate.
