A 1/24th scale Mirium Moran
This Is a build that Is ongoing at the present time.
Moran towage have let me have a set of plans for this tug, she Is a typical American Harbour tug and twin screw..
the model Is built at 1/2" to the foot, which gives amodel of 54" long with a beam of a massive 16", I have decided to fit It with two kort nozzles of 4.125" dia with props of 4" dia, and I shall be using two 12volt M.G. Roadster cooling fan motors , which came from E bay at £30 each brand new.
The fist thing that I did was to get the pland blown up to 1/24th scale at the local print shop.

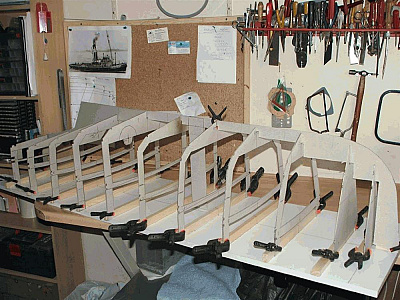

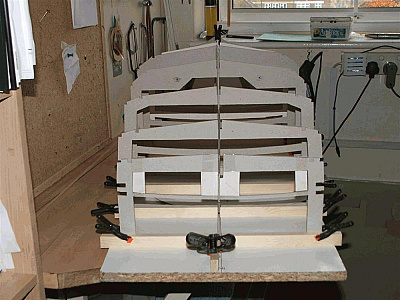

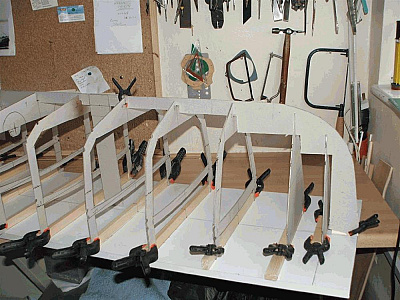

then I transferred the hull lines to card cut them out and assembled on the bench to make sure that all was straight and fair.
Moran towage have let me have a set of plans for this tug, she Is a typical American Harbour tug and twin screw..
the model Is built at 1/2" to the foot, which gives amodel of 54" long with a beam of a massive 16", I have decided to fit It with two kort nozzles of 4.125" dia with props of 4" dia, and I shall be using two 12volt M.G. Roadster cooling fan motors , which came from E bay at £30 each brand new.
The fist thing that I did was to get the pland blown up to 1/24th scale at the local print shop.
then I transferred the hull lines to card cut them out and assembled on the bench to make sure that all was straight and fair.
