NAXOS - Fishing Boat

Started by hecrowell

34 updates 154 likes 120 comments

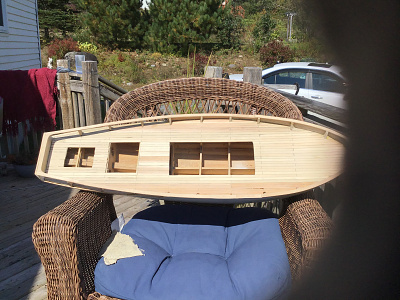

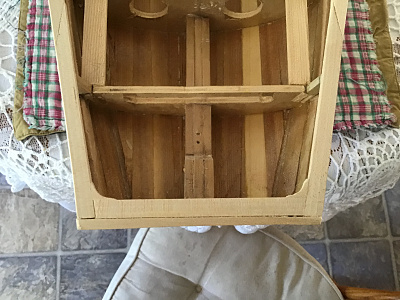

NAXOS - Planking

Man ol man! What a painstaking process this is! Cutting, trimming, fitting:More Cutting, trimming, fitting: then wating for glue to sei before the next piece.
i have learned a lot yet still so much more to learn. I suspect that tomorrow will finish the planking.
All in all,I have enjoyed every bit of the build.

EDIT
One thing I have learned is - if there is a next time, I will be using cyano glue!!
Liked by Joe727 and ianed57 and
3 comments
  1. Newby7Bronze
    Fleet Admiral
    For me I think when you build you learn all the time.My father would say.Keep an open mind and you will learn something new every day.
    Rick
    Liked by RNinMunich and Joe727 and
  2. Joe727
    Commander
    "What a painstaking process this is! "

    Yes, I agree, but I'll bet you'll be thinking about your next planking project soon!

    That's what happened to me, I once dreaded planking but after some success I am beginning to really enjoy it.

    Joe 😎
    Liked by Martin555

Sign in to comment on this update.

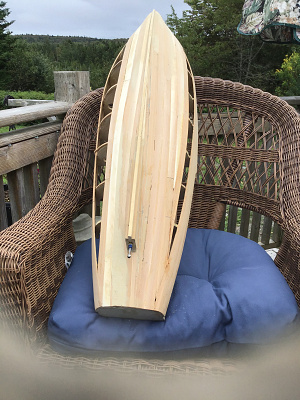

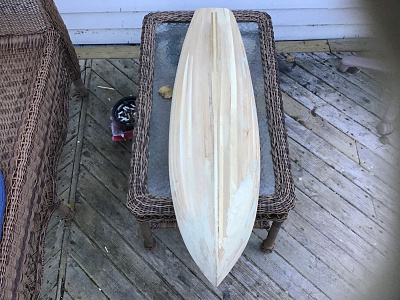

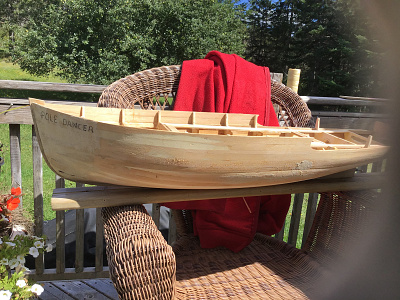

NAXOS - Planked

FINALLY, completed the planking. Now for sanding, spot filling, more sanding, then repeat several times. Picking up the varathane or polyurethane Today and ginin’ er Hell, wet sanding and more of the same.
The name on her prow is temporary for the benefit of my dear Niece who is full of the Devil. At my sons wedding she put on a pair of shorts and a skimpy top and pole danced using the Center pole of the large dome tarp which we had set up in our back yard. She named my boat in her honour.

EDIT
Had a couple of low spots near the stem. No choice but to fill them. Didnt want to do that, but what the heck - shes going to be painted anyhow.
Liked by Joe727 and RNinMunich and
3 comments
  1. Colin HSilver
    Fleet Admiral
    Great shape and some very tidy planking, be proud shipmate, it looks good. Shouldn't take a lot of filling.
    Cheers Colin.
    Liked by Martin555

Sign in to comment on this update.

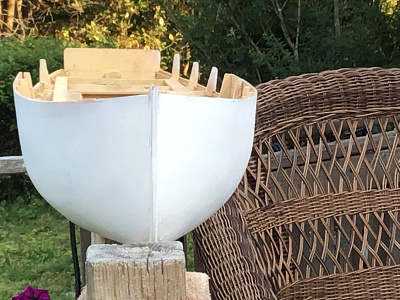

Naxos - Float testing

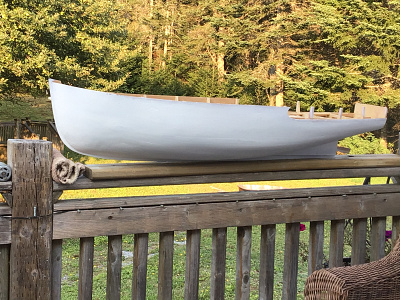

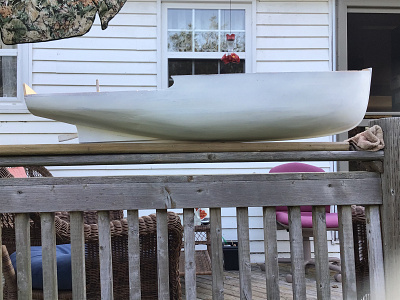

Tomorrow is the day I have been waiting for. After several coats of varathane, several rub-downs with 180 grit then three coats of white undercoat, float testing will take place tomorrow. I see some imperfections in the finish, so now seeking comments on what to use to fill them.they are small and some consist of a layer or two of filler that didnt ger feathered properly. I am considering an automotive filler called bondo.
Liked by Martin555
5 comments
  1. Ronald
    Fleet Admiral
    He is fine. I will text him on my phone and ask him to sign on and say Hi.
  2. Ronald
    Fleet Admiral
    He and the Mrs. have been canning Tomatoes, bumper crop this year. But, not building boats lately. All is well!

Sign in to comment on this update.

NAXOS - Hull done (almost)

Except for a few flaws, the hull is almost finished. There is one planking seamline just about at the waterline on the port side which I will take care of once I float test tonight. I am sure no leakage there because of several coats of varathane plus a coat or two of white primer.
Pictures of float testing forthcoming. Will weight her down good with a couple bottles of water and let her float (I hope) for ten minutes or so.

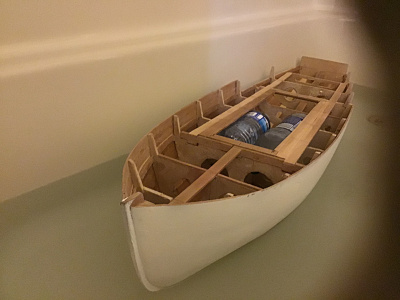

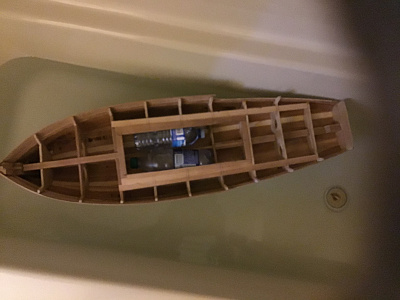

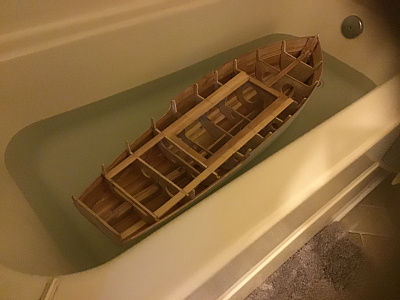

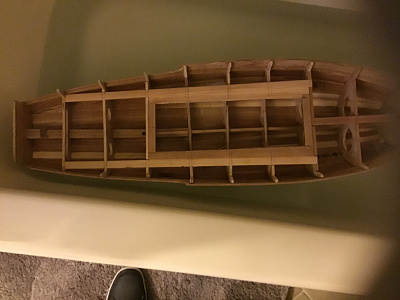

THE NAXOS FLOATS!!
After 1 hr in the tub weighted down, no water was shipped except for a minor leak in one of the water bottles I was using to set her down. I think that some water seeped up through the Stuffing box hole which I had plugged, but not enought to cause me concern.
From what I could see because it was a bathtub test, she sure looked good Sitting in the water. I am sure I saw a smile on her face - I know there was one on mine.
Liked by Joe727 and MouldBuilder and
3 comments
  1. ianed57
    Sub-Lieutenant
    Very well done! I sometimes wonder if we spend too much time chasing a fabulous finish on model boats. This is a wooden boat and may well have shown plank lines and have been a bit rough round the edges. I have often reminded myself when finishing model and full sized hulls, 'This is all going to be in the water!'
    You've done a great job on this and I look forward to seeing her progress.

    Ian
    Liked by RNinMunich and Martin555
  2. Newby7Bronze
    Fleet Admiral
    Well done on the hull and water test.That's a good start to have a finished hull and to know it will be good on the water.
    Rick
    Liked by Martin555

Sign in to comment on this update.

NAXOS - Decking

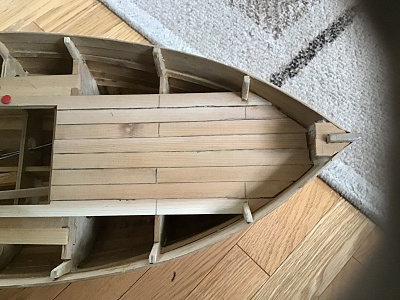

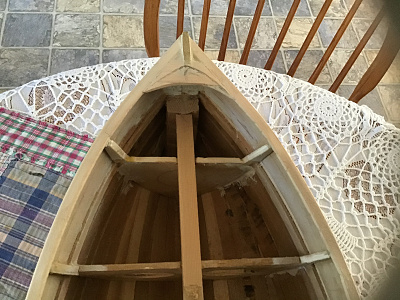

This is more or less an experiment for me. Using the same width decking as I used for planking. Laid most of the fwd decking and sanded it nice and flat. Dressed the joints with lead pencil to make it look somewhat like deck caulking. As one member reminded me - its only a fishing boat, not a yacht. Br fussy, but don't worry too much if a planking seam is showing a bit or a little dent.
Liked by Colin H and jbkiwi and
4 comments
  1. RNinMunichBronze
    Fleet Admiral
    Experiment successful Hec 👍
    Good to see you've still got lead in your pencil😉
    This is a job I'm dreading on my Billing fish cutter restoration/RC conversion.
    Cheers, Doug 😎
    Liked by Martin555
  2. Dampfgerd
    Petty Officer 1st Class
    Hello
    You make a Nice and fast build...one Day i will start with that model, have now the Plan some years at home in my plan collection

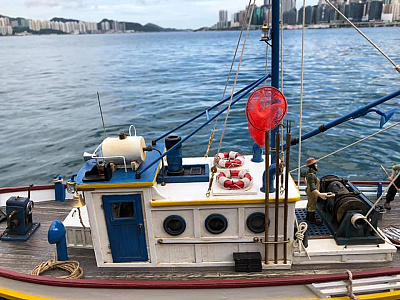

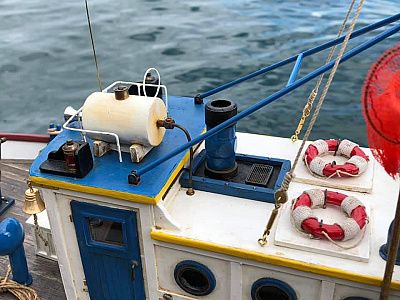

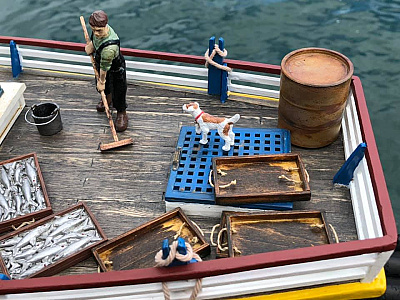

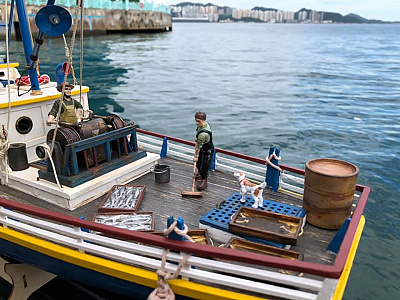

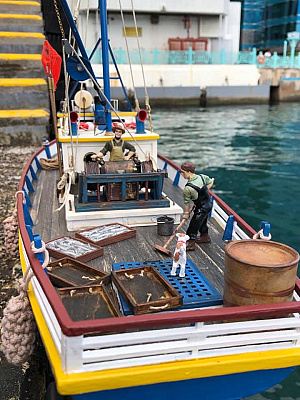

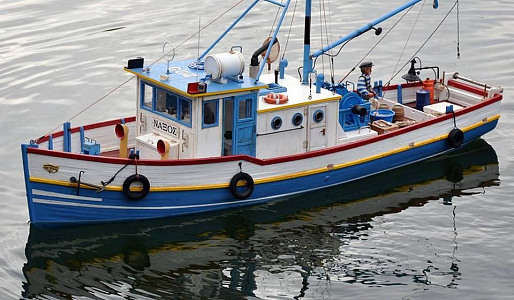

    Found a Naxos Version from Ken Wong on Facebook.

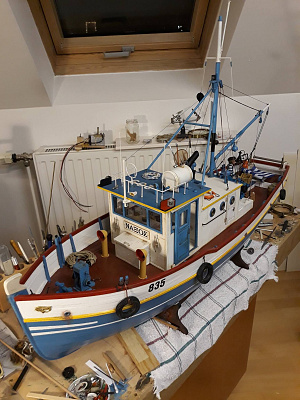

    The last 3 Pictures is a Other Naxos Version....had save on my Pc ( no idea from where )
    Greetings Gerhard
    Liked by ianed57 and MouldBuilder and

Sign in to comment on this update.

NAXOS - 20/11/14

Was a busy day for real life things so just put the top rail and tidied up a few other things. Also, removed the decking experiment - didn’t like it. Will get some 1/8 x 3/8 basswood For decking.

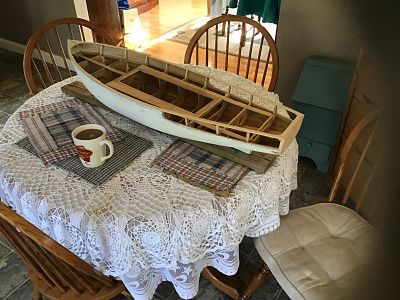

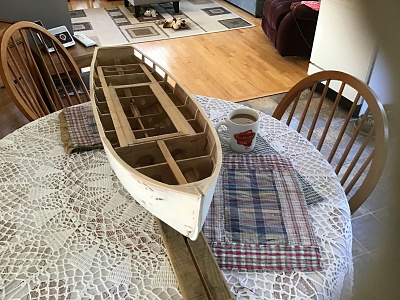

The coffee is to give you guys the impression that I don’t just work on my boat ..... I do other things as awll, haw, haw, haw!
Liked by Joe727 and jbkiwi and
1 comment

Sign in to comment on this update.

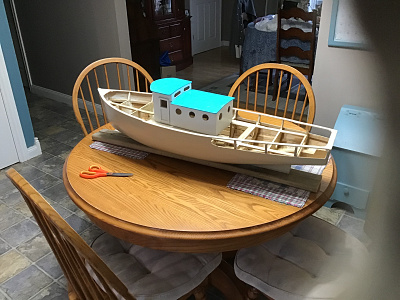

Naxos - Paint Shop

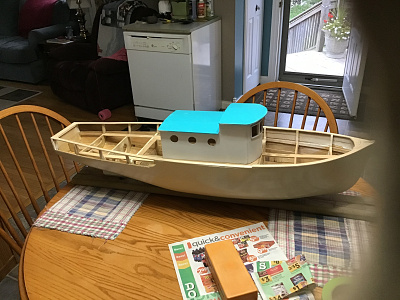

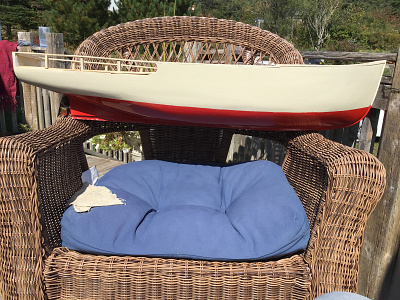

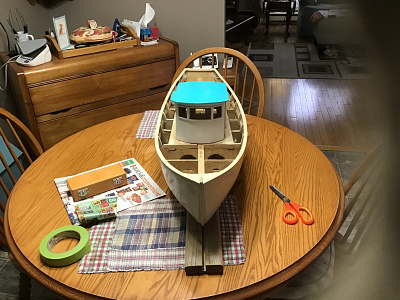

Took the old girl into the paint shop today. Hull is a tan colour with teal roof and white superstructure
Now waiting for the portholes to come in then Will do the window glazing (plastic, of course) And paint the interior.
So far, so good, and I am actually quite proud of my “girl”
Liked by MouldBuilder and RNinMunich and
6 comments
  1. RNinMunichBronze
    Fleet Admiral
    Thank you Colin😀
    Sorry to read of your recent discombobulation 😮
    But pleased to see that you are 'rising from the ashes' with your usual spirit👍
    'You can't keep a good man down'!
    You are an inspiration to us all😉
    BRAVO ZULU.
    😎
    Liked by Martin555 and Colin H
  2. hecrowell
    Chief Petty Officer 1st Class
    Hey Ken
    Thanks for the comment on the paint. AllI can tell you is good old Rustoleum spray paint, calm winds and a nice dry sunshine day, and outhouse luck. Hope it don’t look too good though or I will have to convert her to a yacht, har! har!
    Liked by Martin555

Sign in to comment on this update.

Naxos - latest progress

Well,gave the old girl a waterline. Levelled her up and used my cheapir lazer level. Even though it checks level, it looks like it swoops down 1/4” to 3/8” about a quarter of the way back from th stem...just doesnt look quite right sideview.
Next I finished the decking. All straight runs were easy, but cutting, trimming and fitting the pieces between the uprights was slow work, and a real pain. If I had to do it again, I would have added them after. Hindsight!

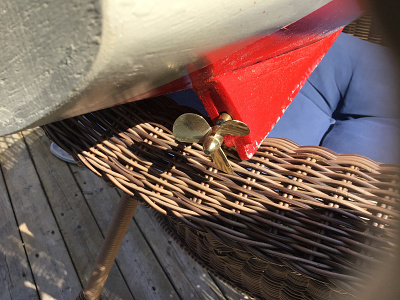

Next, the prop arrived so now she has propulsion. Should have rethought the stuffing box a bit more and got a 30cm unit instead of the 25cm because it is nearly impossible to get at the set screw for the U joint. It would be reachable with a “t” handle Allen key or at least a long Allen key down through the hole in the deck for the mast. Will put a collar at the bottom of the mast to prevent the mast from slipping down through the deck. The sidestays and forestay are used for holding the mast upright.

So, that’s it for this post.
Liked by mturpin013 and MouldBuilder and
3 comments
  1. Newby7Bronze
    Fleet Admiral
    I'm with you on finding that we should have done something a little differently.We find out after the fact .Hind sight is 20/20.Good looking build.
    Rick
    Liked by Martin555
  2. hecrowell
    Chief Petty Officer 1st Class
    Hey - Martin
    i tend to agree with you 100% on the WL looking low. It is very close to where it shows on the plan. Maybe I didn’t weight her enough during the float test and I marked it with pencil during the float test at the stem and stern.
    Anyway, will have another look at it with radio gear and batteries. Maybe I will have to mix lead shot and glue to get her to sit so she looks good and mark the WL from that.

    Anyway, thanks for your input...appreciated.
    Liked by Martin555

Sign in to comment on this update.

Naxos - Main Battery

I am up against it here and seeking advice on the main battery type to use. I have read lots on lithium ion and lipo polymir and hazards associated with charging and storing them. I know absolutely nothing about this battery technology and don’t relish turning my hard work nor my home into a pile of smouldering cinders. For this reason, I am leaning toward the SLA battery of 2 to 4ah rating. The weight and physical size of these smaller units will work well for fitting into the allocated space of the battery compartment. I could even parallel them for approximately twice the ah rating.

Some advice on this please!
Liked by stevedownunder and billmcl61 and
3 comments
  1. billmcl61
    Warrant Officer
    Ah Doug thank you for this warning about batteries in parallel, I'm planning on doing just that with the "flower",
    I'll have to get one of these modules.

    Bill
    Liked by RNinMunich
  2. RNinMunichBronze
    Fleet Admiral
    Glad to be in time Bill👍
    Alternative is to get yourself one of those dual Schottkys (min 20A), bolt it on a lump of ally or copper and stick it on a chunk of veroboard with some screw connectors or fly leads!
    There's nowt else to it!
    Cheers, Doug😎

Sign in to comment on this update.

NAXOS - Equipment panel

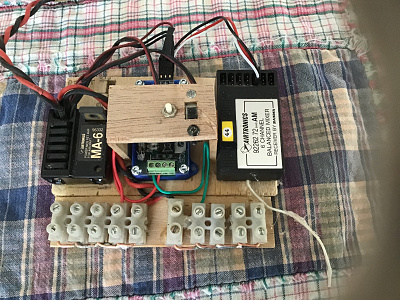

Here is my equipment panel. It is about 5 inches wide and 4 inches high.
Extreme left - Airtronics ESC - 20A
Center - on/off switch for the ESC. Small white button is the ESC reset.
Center - (below the ESC panel is the sound module
Right - the Receiver - Airtronics 6 ch
Along the bottom is the +Bat bus and -Bat bus.
Liked by jbkiwi and stevedownunder and
1 comment

Sign in to comment on this update.
