Billing Boats Mercantic

Started by T33CNO

47 updates 163 likes 99 comments
T33CNO #31 of 48

Moving on

Bit by bit.
I’ll add pictures as it goes today.
Edit

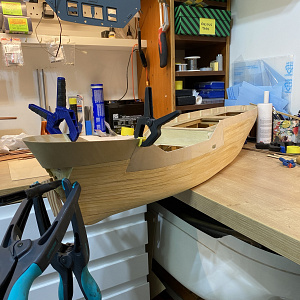

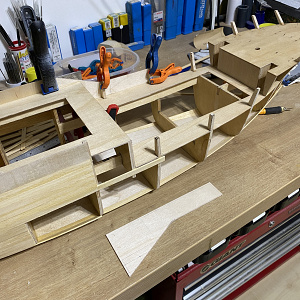

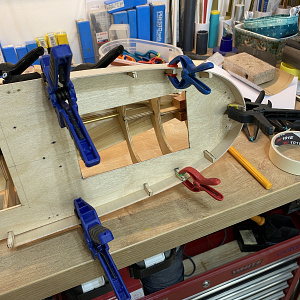

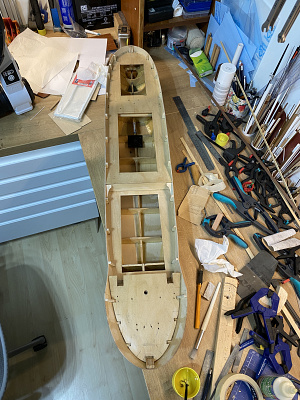

I’ve decided to plank the whole aft section with the planks joining at the midship frame. As this is going to be glass coated anything goes, whatever is easiest.

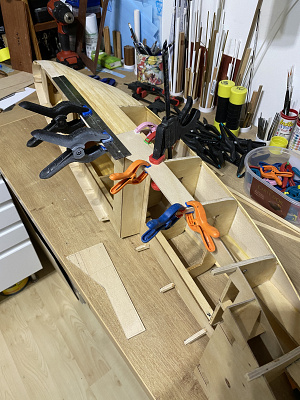

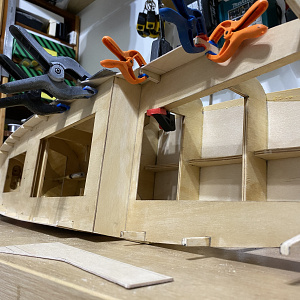

The aft bulwark ply bends very easily if used with the grain at 90 degrees to the bend.
Liked by RNinMunich and Colin H and
2 comments
  1. T33CNO
    Sub-Lieutenant
    Indeed Ron👍
    The original 1964 kit used mahogany sheet and everything was printed on it with the grain the wrong way rendering it useless for the bends required.
    Liked by Martin555

Sign in to comment on this update.

T33CNO #32 of 48

Groundhog Day

Early start. I hope to finish the stern today and start on the rest of the ply skin.

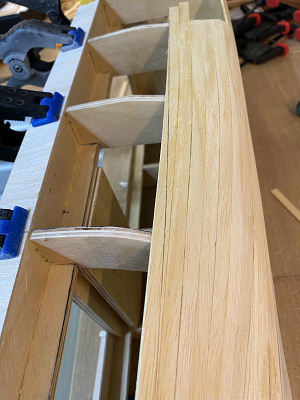

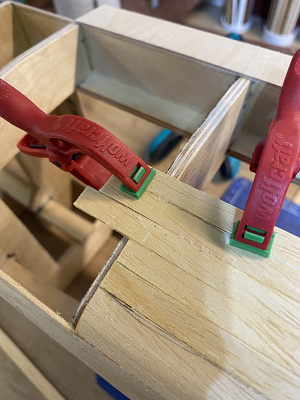

Pictures 3 and 4 show an example of how I overlay the next plank to mark a cutting line on the previous plank.
There is a technical name for this but I just call it making it fit 😂

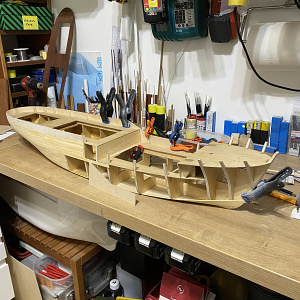

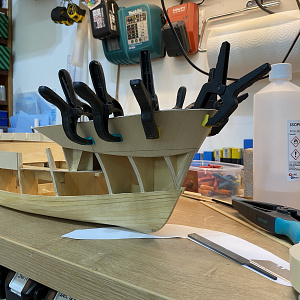

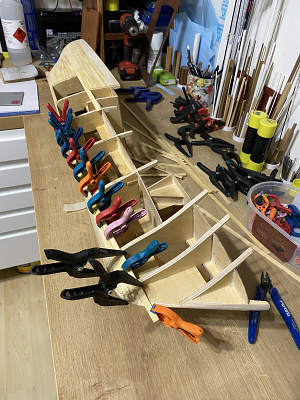

Picture 5 the rest of the bulwark fitted as far as frame 5 where the shape will change moving forward.

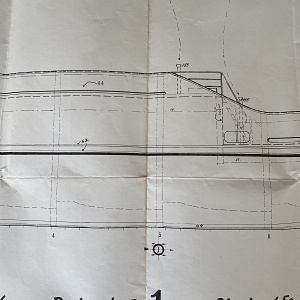

As this is not a kit but a remake with new wood the ply strip is cut to a height taken off the plan and allowing for the gunwale later.

Now pictures 9 & 10
First the line pared back with a scalpel and a file used to straighten the edge.
A dry fit of the next plank in 10 shows some of the last but one plank also needs a trim.
This doesn’t need to be done frequently but here I’m slowly bringing the planks around to be parallel to the deck line.

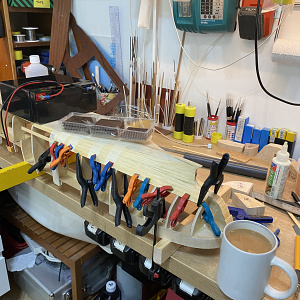

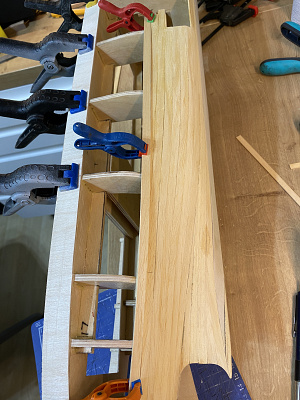

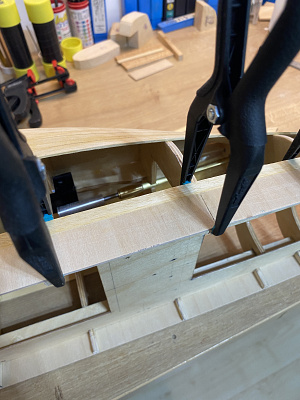

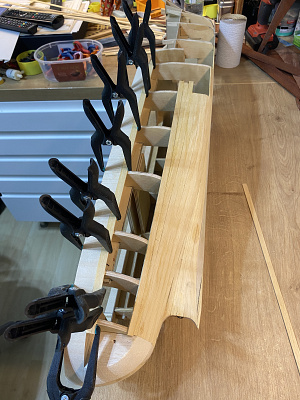

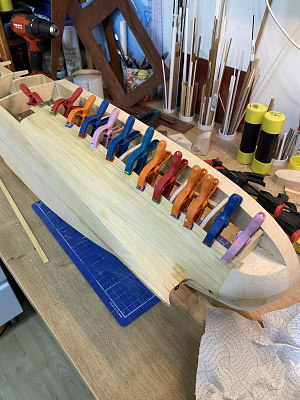

Picture 11 here the planks are not trimmed to length as it aids clamping each successive plank.
Picture 12

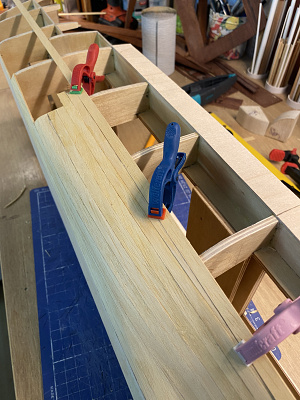

Now that this plank is completely straight there is no sideways stress so it simply needs clamps to prevent waves and keep it flush to the previous one.
Wavey planks.
Eliminating waves equals a better shape with less sanding and less filling.
You can fill low spots but sanding high spots could break through, both undesirable.
Picture 16
As the planks from above and below converge we need to select planks who’s widths will fit the opening without leaving a slither. Better a little over size than just short.

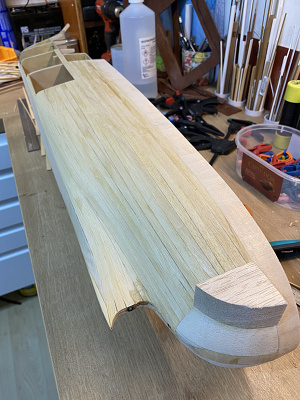

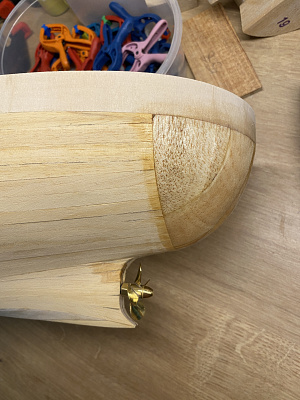

Final pictures with stern quarter balsa roughly shaped and soaked in resin to harden it.
Liked by RNinMunich and Martin555 and
5 comments
  1. T33CNO
    Sub-Lieutenant
    Good question Martin

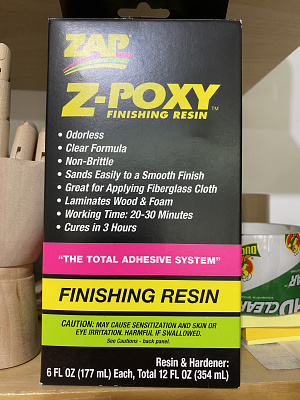

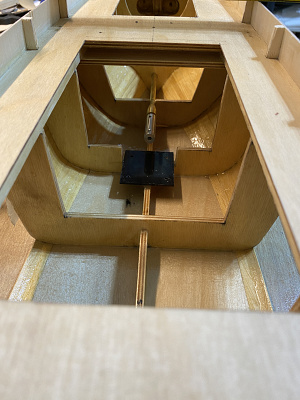

    It is finishing resin. All of my wooden boat builds are built to withstand total submersion. I seal as I go ensuring surfaces are covered before I cannot get to them.
    When the planking is finished I poor dilute resin into each compartment and rotate the hull back and forth to make sure they are coated right up to the deck
    Liked by Martin555

Sign in to comment on this update.

T33CNO #33 of 48

Just another day

Catching up on yesterday’s schedule.

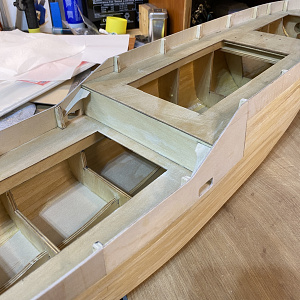

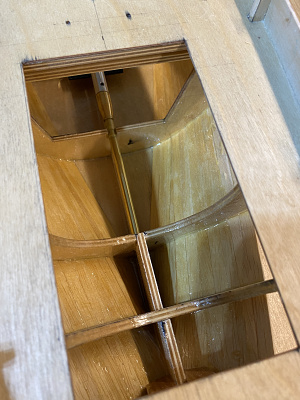

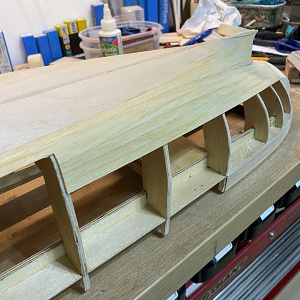

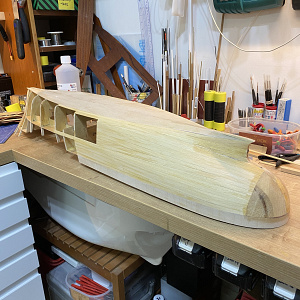

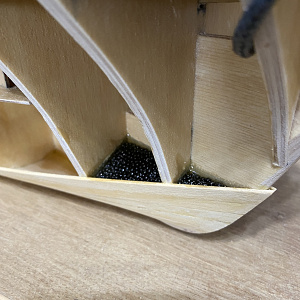

Aft hull skin now closed and resin coated inside along with a bit of lead shot in the stern bilge, no point wasting surplus mixed resin

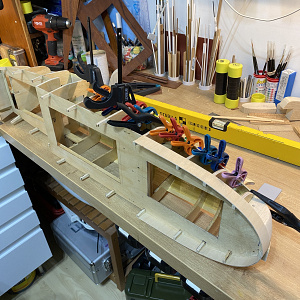

Straight edges fitted fore and aft to check for twist all along the way. Straight as a die 👌
A break now before making a card template to skin the bow in one piece of ply.

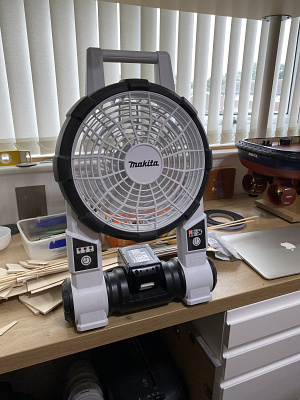

Fan for ventilation while using resin.
Liked by mturpin013 and Brucep and
5 comments
  1. T33CNO
    Sub-Lieutenant
    This is my fifth plank on frame in recent years.
    Have a look at my Billing Hoga in my Harbour.
    Not even any filler so I decided to not paint her to show new modellers how its constructed. Bare wood is very popular at shows
    Thank you Colin
    Liked by Martin555
  2. T33CNO
    Sub-Lieutenant
    I just had a count up and this is my sixth plank on frame and my Riva Aquarama is double planked with a lime base and mahogany top🤔
    Smit Rotterdam
    Booth bay lobster boat
    Boulogne Etaples
    Riva Aquarama
    Pearl harbour Hoga
    Mercantic
    I’m quite surprised by that but I cannot say I’m not well practised 😂
    Liked by Martin555 and Brucep

Sign in to comment on this update.

T33CNO #34 of 48

Ready for tomorrow

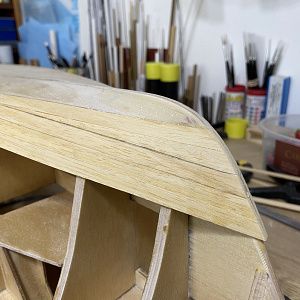

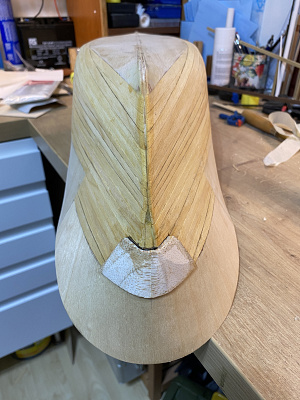

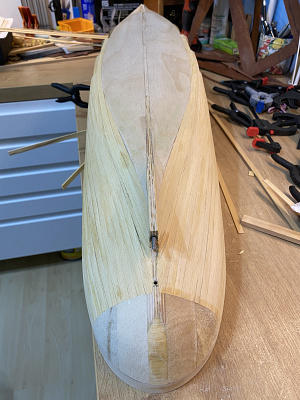

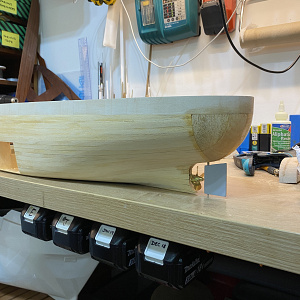

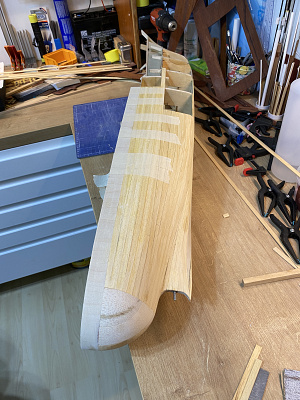

Her bottom feels really smooth now 🤗
No more work here now until the whole skin is ready for sanding.

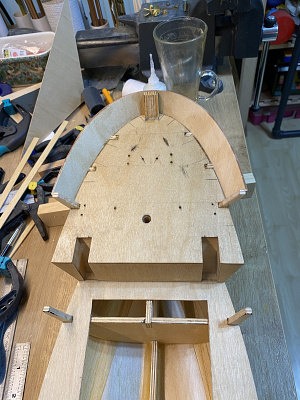

So the bow rears her head for attention.
Liked by alan44 and mturpin013 and
2 comments
  1. Nerys
    Fleet Admiral
    You are making an excellent job of the planking, (as if you didn't know) I envy your skills. I love those traditional cargo boats.

    Nerys
    Liked by Martin555 and T33CNO
  2. T33CNO
    Sub-Lieutenant
    Thank you. Actually someone on Facebook asked what width planking I'm using. A good question and taken for granted. Todays Billing kits come generally with 7mm wide but as this is not a kit but a remake with new timber I had to buy a selection of what is available. For the most part I've used 6mm planks
    Liked by Martin555

Sign in to comment on this update.

T33CNO #35 of 48

A head start

Restless and armed with a single malt I visited the bow tonight.

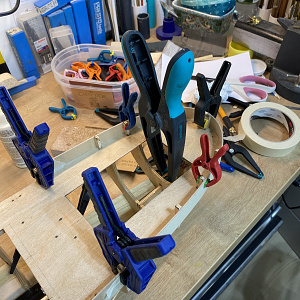

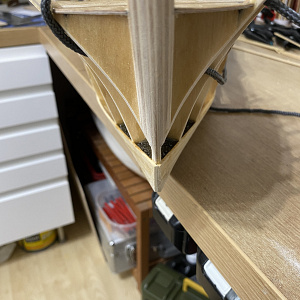

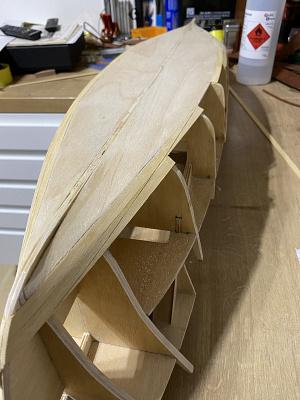

There’s a mismatch betwixt the keel and the frames not of my doing.
The only course open is to the fix the skin as is and trim the keel to suit.

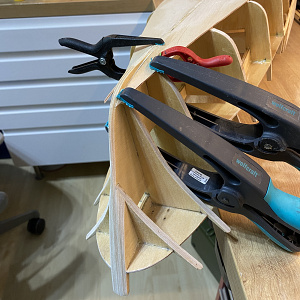

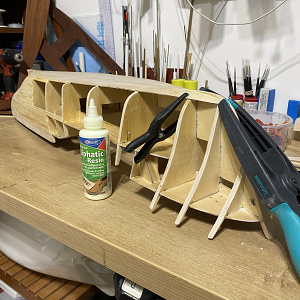

One side fixed to set overnight.
Liked by alan44 and Martin555 and

Sign in to comment on this update.

T33CNO #37 of 48

Back at it

After most of the weekend off.

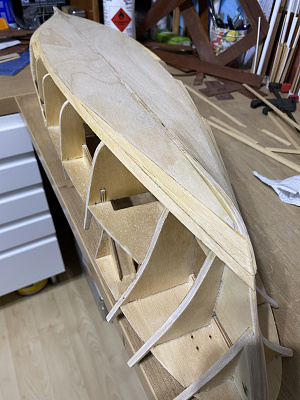

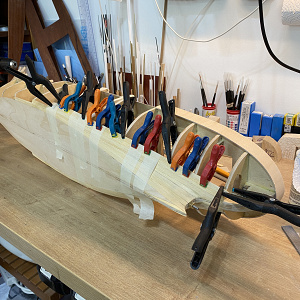

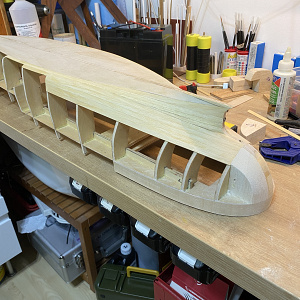

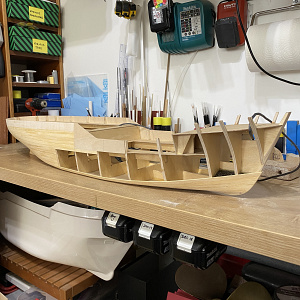

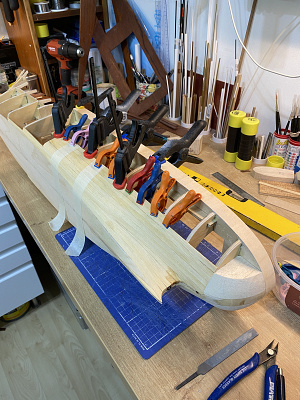

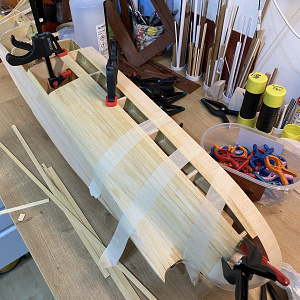

Planking from the keel upwards and extending the ply bulwarks forwards.
Liked by figtree7nts and alan44 and
1 comment
  1. Robertcooper
    Chief Petty Officer 1st Class
    Hi T33CNO

    A BIt more planking done it is looking very well. Keep up with the hard work it will be worth it in the end.

    Robert 👍
    Liked by T33CNO and Martin555

Sign in to comment on this update.

T33CNO #38 of 48

Before the England game

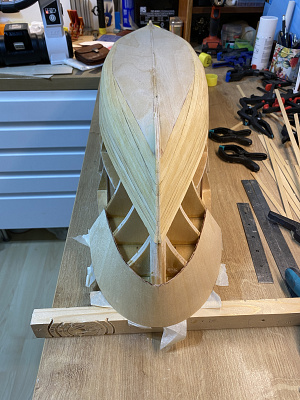

Both sides now at the same stage.

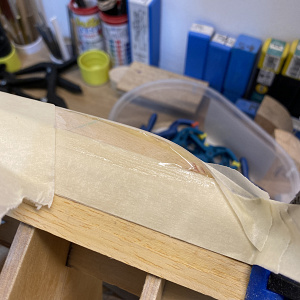

Rather than reshape the keel to suit the bottom skins I’ve dammed the area with masking tape to fill out with 15 minute resin, then shaped.
Lead shot installed in the bow also.
Edit
Since England beat Germany I fitted another plank 🍻😜
Liked by MouldBuilder and figtree7nts and
1 comment

Sign in to comment on this update.

T33CNO #40 of 48

Progress

Not many pictures but I will add more later.

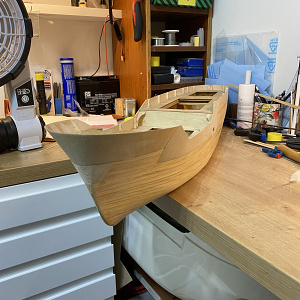

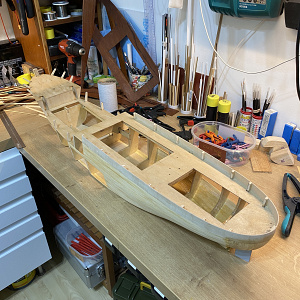

Hull is almost closed and the last piece will be a block of balsa for final shape before sanding the entire hull ready for grp overcoat.
Liked by MouldBuilder and mturpin013 and
3 comments
  1. Robertcooper
    Chief Petty Officer 1st Class
    Hi T33CNO

    This is looking very good. Keep up with the hard work.

    Thanks
    Robert 👍
    Liked by T33CNO

Sign in to comment on this update.
